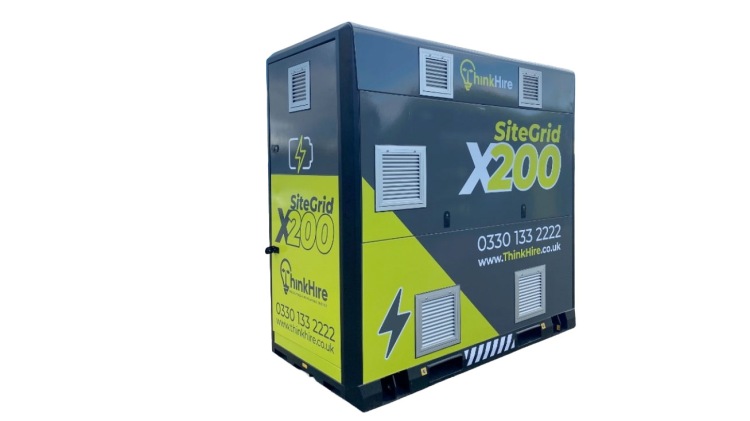

SiteGrid X200 Industrial BESS
High-Capacity Power Unit
SiteGrid X200 is engineered to provide robust, non-stationary power with an impressive 188 kWh battery storage capacity in any location. This unit seamlessly integrates with other energy sources, including renewables, delivering an efficient, reliable, and adaptable power supply for a diverse range of sectors and industries. Manages energy peaks effectively, ensuring consistent and reliable power delivery even during high demand.
Reduced
C02 Emissions
Reduced
Fuel Costs
Reduced
Noise Pollution
Features & Benefits
Product Specifications
| Length | 2.3 m |
| Width | 1.15 m |
| Height | 2.2m |
| Weight | 2900 kg |
| Peak Power | 400 kVA (10s) |
| Phase Configuration | 3PH |
| Inverter Power | 200kVA |
| Battery Type | Automotive Grade Lithium LFP |
| Battery Capacity | 169 kWh |
| Battery Depth of Discharge | 90% |
| Outlets | 500A Power Safe, Busbar (hardwired) 2x 125A 3 Ph 5 pin IP67 Commando Sockets |
| Input | 125A 3 Ph 5 pin IP67 Commando Plug or Busbar (hardwired) |
| Liquid cooling/heating | -20 to +50°C |
Think Hire Brochure
We have over 60 years combined experience in the design, manufacture, hire and sale of innovative products, with an environmentally considerate power supply.
Our Range of Battery Energy Storage Systems
Environmentally considerate, cost-reducing, hybrid generators and portable power for hire and sale.
Frequently Asked Questions
You don't A BESS, such as the SiteGrid X200 can run on grid, a number of renewables or supported by back up generator and enables you to run your project much more efficiently, by minimising generator runtime if generator required, slashing fuel costs and avoiding carbon whilst reducing noise. By storing and generating power, a BESS can cater for peak power demand with a smaller generator, reducing operating costs significantly.
With 170kWh of energy storage and a peak power of 400kVA, a SiteGrid X200 can be grid tied or off grid and is ideal for powering infrastructure, construction and energy projects, including BESS sites, wind turbines, tower cranes, pumps and modular buildings.
The SiteGrid X200 uses peak shaving and load sharing to reduce the peaks and troughs of power demand. This allows you to meet your energy requirements with a much smaller generator, saving fuel and reducing emissions.
The SiteGrid X200 can store 170kWh of energy from any power source, including grid input during cost-effective off peak periods, solar energy during daylight hours, wind energy from on-site turbines and energy from a diesel, HVO, LPG or Hydrogen generator.
The SiteGrid X200 is designed to be fully portable, so it can be deployed rapidly to any on and off-grid location and moved quickly and easily as a project progresses. It has a lifting eye, and is skid mounted with pockets for forklift and telehandler forks.
Emissions can be reduced by up to 80% or more by deploying the energy stored and by running diesel generators at their most optimum load. This avoids constant idling and occasional overloading, and significantly reduces overall generator runtime.
Many sites report savings of 80% or more, including fuel savings, lower hire costs for generators, reduced generator fuelling and maintenance time and reduced wear and tear on connected equipment. You may also save on pollution penalties and increased productivity. Case studies and references are available on request
The SiteGrid X200 can charge rapidly in around an hour so it is ready for use fast. It can also discharge just as quickly, making it ideal to support peak loads such as tower cranes, equipment start-ups and high demand operations.
The SiteGrid X200 can be charged from a variety of sources, including a traditional diesel generator, environmentally friendly HVO, LPG, glycerine or hydrogen generators, direct grid power and sustainable renewable energy sources such as solar power, wind energy and hydroelectric power.
The SiteGrid X200 is known as a hybrid because rather than relying on a single power source, such as a diesel generator power, it also uses stored battery power and renewable energy sources such as solar and wind energy, to provide a steady, sustainable, cost-effective power supply.
Yes. Think Hire can supply the SiteGrid X200 and a range of other BESS units to hire or buy. If you have regular needs for portable power supplies, it may be more cost-effective to buy a BESS such as the SiteGrid X100, than to repeatedly incur hire costs.
Yes. The SiteGrid X200 is IP rated for weather resistance, so it is suitable for a range of UK and international weather conditions. This makes it especially suitable for remote, off-grid sites, coastal operations and emergency road and rail repairs in all conditions. The SiteGrid X500 can operate efficiently within a temperature range of low as minus 20 and up to 50 degrees Celsius and is liquid cooled.
