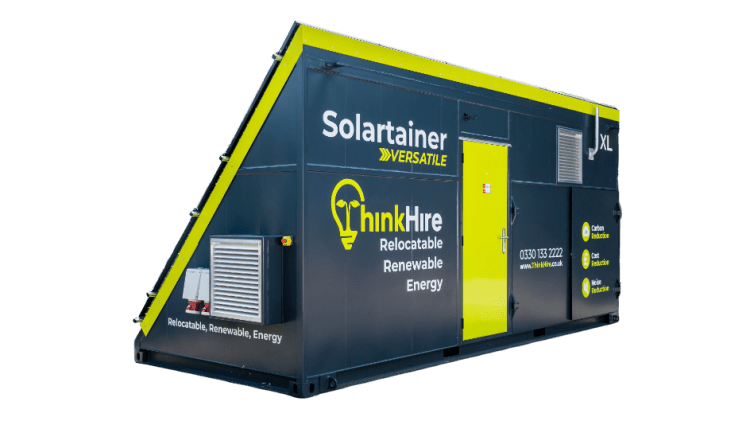

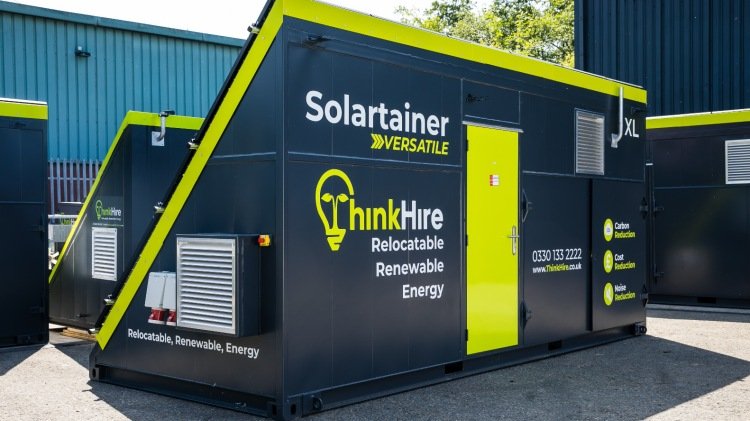

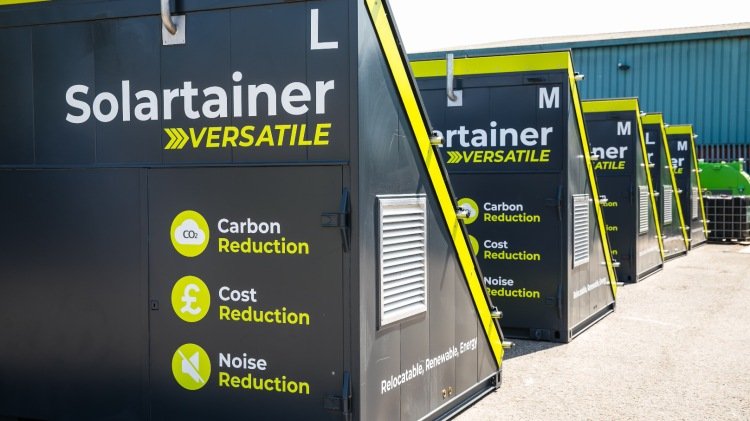

Solartainer Versatile

Solartainer Versatile
Solatainer S1-S3
Solatainer S1-S3 On Site
Solartainer and Eco Site Setup
Synchronised Solartainer's
Solartainer powering Smart Motorways gantries

Solartainer Versatile
Solatainer S1-S3
Solatainer S1-S3 On Site
Solartainer and Eco Site Setup
Synchronised Solartainer's
Solartainer powering Smart Motorways gantries
Warning
Success

1

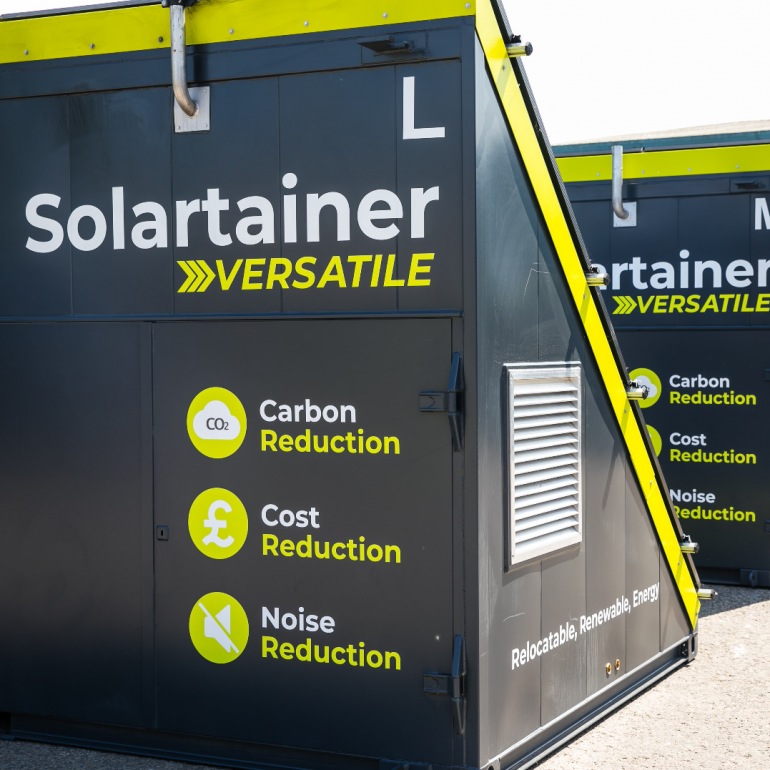

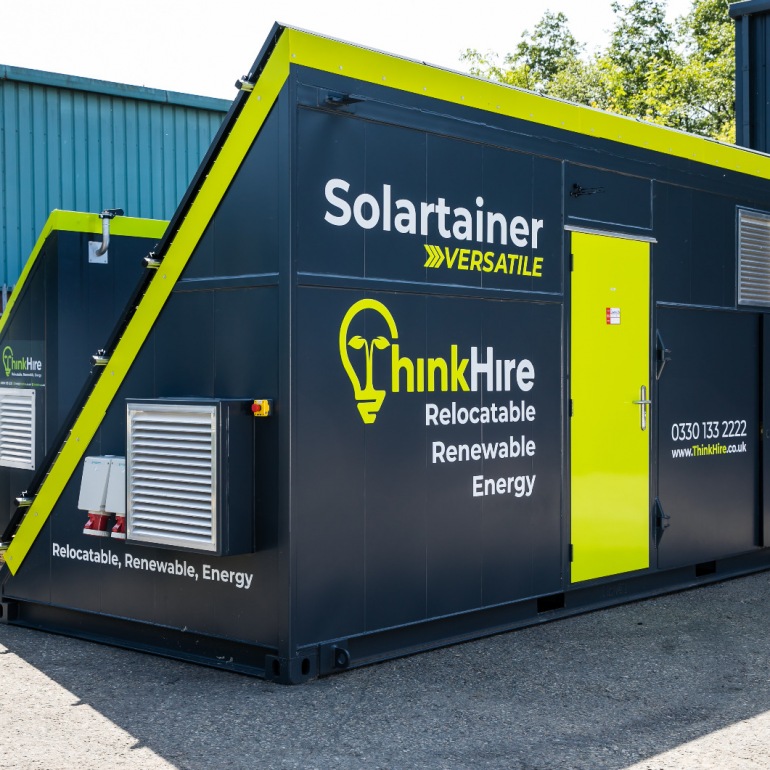

Developed to provide an off-grid power supply, integrating renewable- power and storage with diesel-power back-up to reduce fuel consumption and carbon emissions. This unit also reduces fuel costs by up to 80% when compared to a conventional diesel generator and reduce Co2 by over 50%.

This Solatainer line has an adaptable power system and both battery banking and ancillary generator power can be scaled up or down within the Solatainer to provide the power you really need.

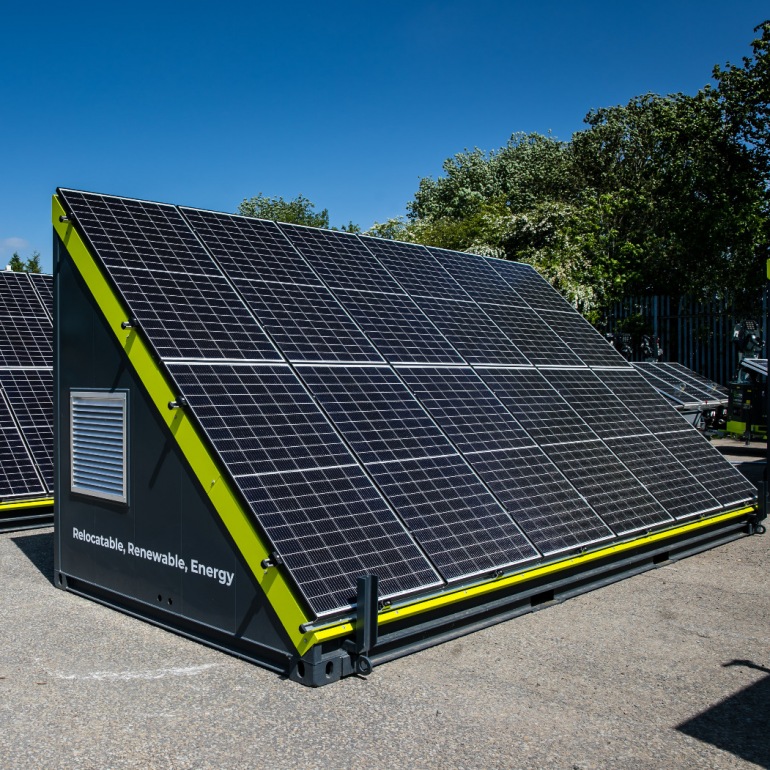

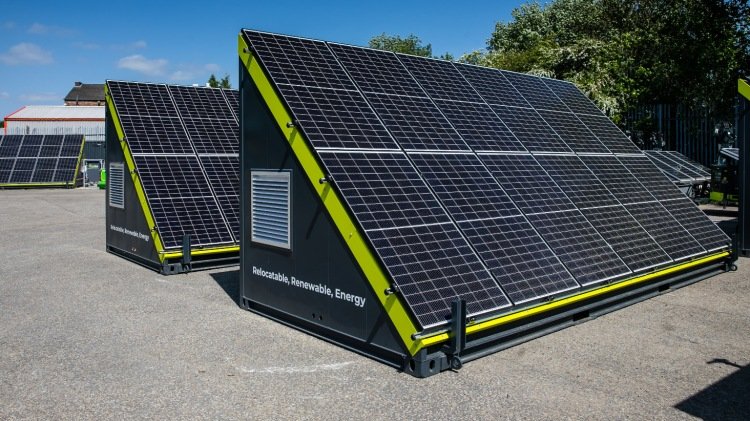

During daytime operation the energy created by the solar panels is harvested and stored in an on-board lithium ion battery pack.

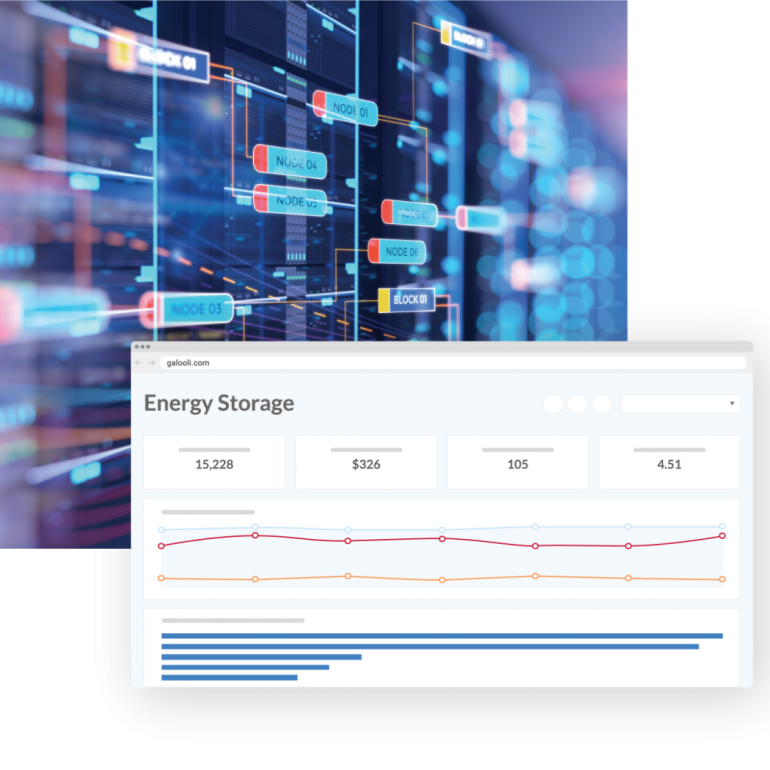

The standby generator is configured to run only when the batteries are depleted to a state of charge configured prior to being set up on your project. Energy performance is monitored remotely via an online portal and monthly energy performance certificates are produced.

Key features and benefits

  • Reduced environmental impact and carbon footprint
  • Reduced generator runtime and service costs
  • Reduced noise emissions
  • Remote energy management as standard
  • Live energy reporting as standard
  • Single phase and 3 phase configurations
  • Can be used as direct replacement for diesel gensets upto 70kVA
  • Adaptive power source
  • Option to synchronise to multiple sets



Specifications

Electrical Properties
Max Rated Power 59kWh
Max Apparent Power 30-70kVA
AC Nominal Voltage 400/230/115 V
Operating range -25°C/+60°C
Rated frequency/ voltage 50 Hz
Max Output Current 32A
Mechanical Properties
Dimensions (L x W x H) 6.06 x 2.44 x 2.59(m)
Weight Static Approx. 3000-5000kg
Static Load (Snow) 5400 Pa
Static Load (Wind) 2400 Pa
PV Module High Transmission Glass
Generator
Fuel Diesel
Maximum Power 15-35kVA
Rated Power 13-29kW
Energy Storage
Nominal Voltage Capacity 51.8V
Capacity Electricity From 126Ah
Battery Storage From 12-24kWh
PV Panel input Max. 4kWh
