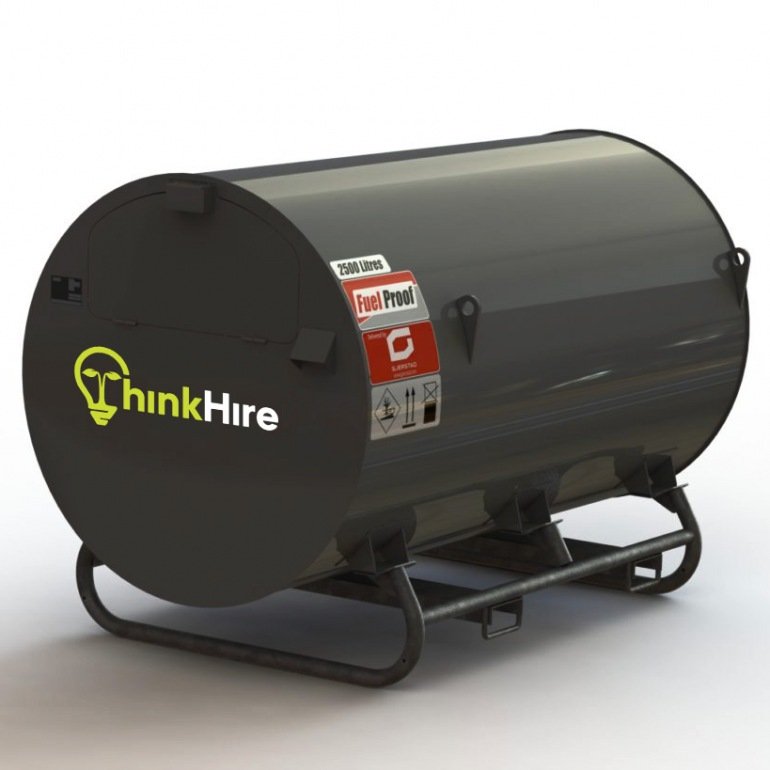

2500L Bunded Static Fuel Tank

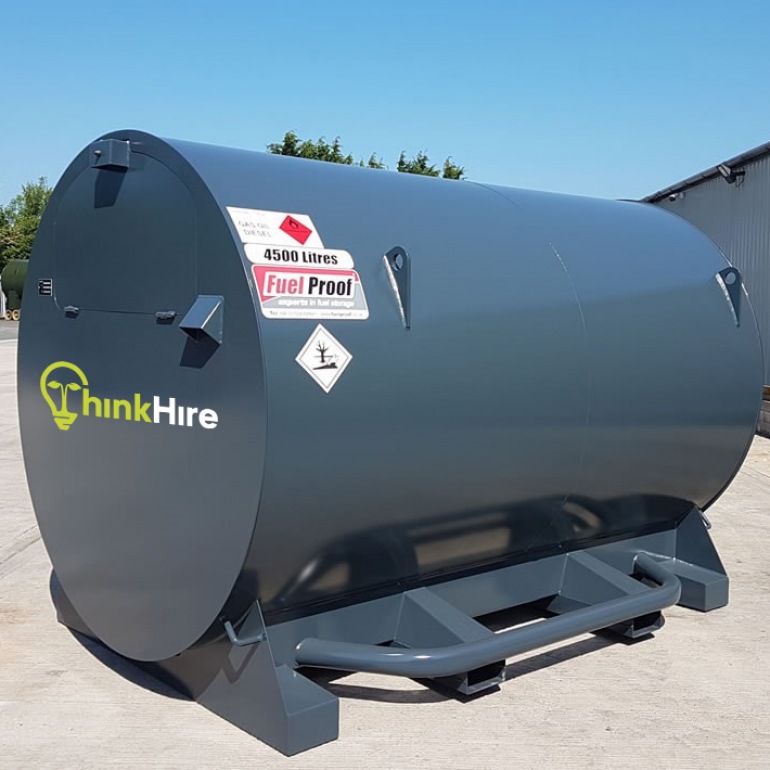

4500L Bunded Static Fuel Tank

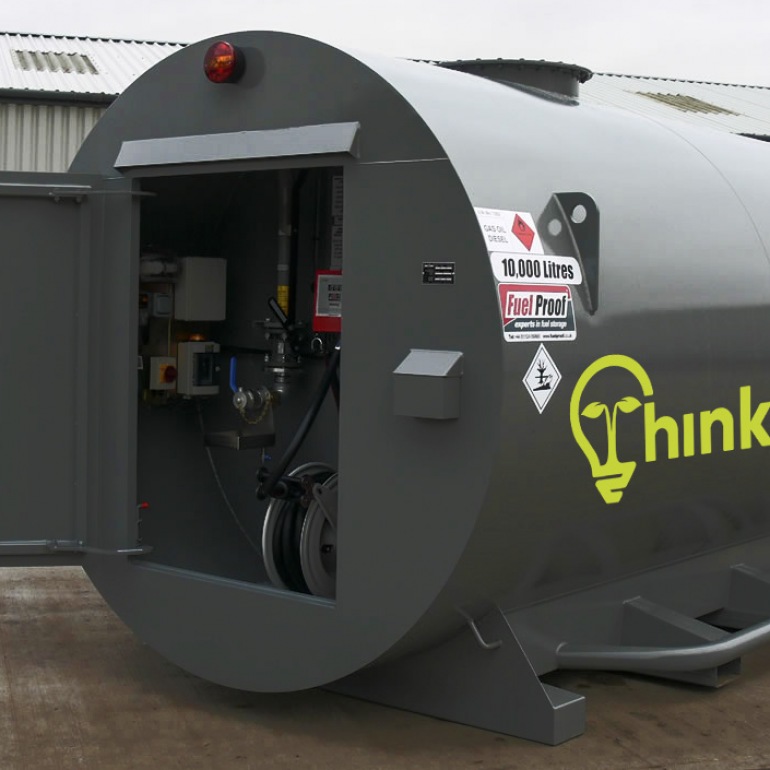

10,000L Bunded Static Fuel Tank
Warning
Success

1

We provide a range of static fuel tanks from 900L to 10,000L to ensure that our customers have a solution for any on site fuel storage requirement and these are all available for both hire and sale.

Storing fuel on a construction site heralds a potential safety hazard and security risk. For this reason, it is required that all fuel on site is contained in bunded fuel storage tanks to ensure maximised safety for everyone on site and to reduce the risk of theft.

All of our bunded fuel storage tanks are designed to the highest specifications. Our heavy duty static fuel tanks are built from long-lasting steel with enclosed pumps, valves, and fittings for added environmental protection, meaning that everything inside the bunded fuel storage tank is completely concealed.

Sizes available and pump options

  • 900L fuel cube complete with push pull pump standard
    • 12V electric pump (flow rate 40 litres/min)
    • 3 digit mechanical flow meter - excellent for monitoring fuel usage
    • 12V battery and carrier
    • Automatic shut-off trigger
  • 2,500L Separate complete with the following fuel dispensing package as standard
    • 4 Stroke Petrol Engined Pump with Oil Alert
    • 6M x 1’ Hose
    • K33 3Digit Flowmeter
    • 1 1/2 BSP Filter Head
    • High Flow Auto Shut Off Trigger
    • Particle Filter for High Flow
  • 4,500L Separate complete with the following fuel dispensing package as standard
    • 1’’ check value
    • 1/2’’ pressure relief valve
    • 2’’ fill point
    • 3’’ splash fill point
    • 1/2’’ generator feed and return connections
    • Rotary fuel contents gauge
  • 10,000L Separate complete with the following fuel dispensing package as standard
    • 4 Stroke Petrol Engined Pump with Oil Alert
    • M x 1’’ Hose
    • K33 3 Digit Flowmeter
    • 1 1/2 BSP Filter Head
    • High Flow Auto Shut Off Trigger
    • Particle Filter for High Flow

Key features and benefits

  • UN approved for transporting diesel on the highway
  • Fully compliant with current environmental regulations
  • Lockable door with anti-vandal padlock cover
  • Heavy duty galvanised steel base with integral forklift pockets
  • All-steel construction for long term reliable service
  • Pump options including 12v and solar chargers
  • Telemetry - optional
