PRODUCT CODE: HG-PP1

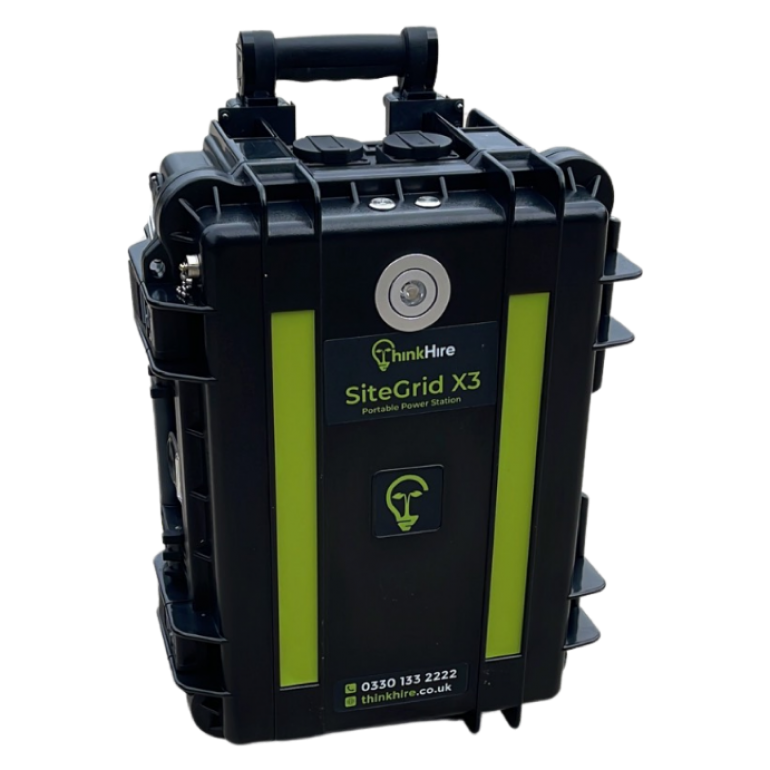

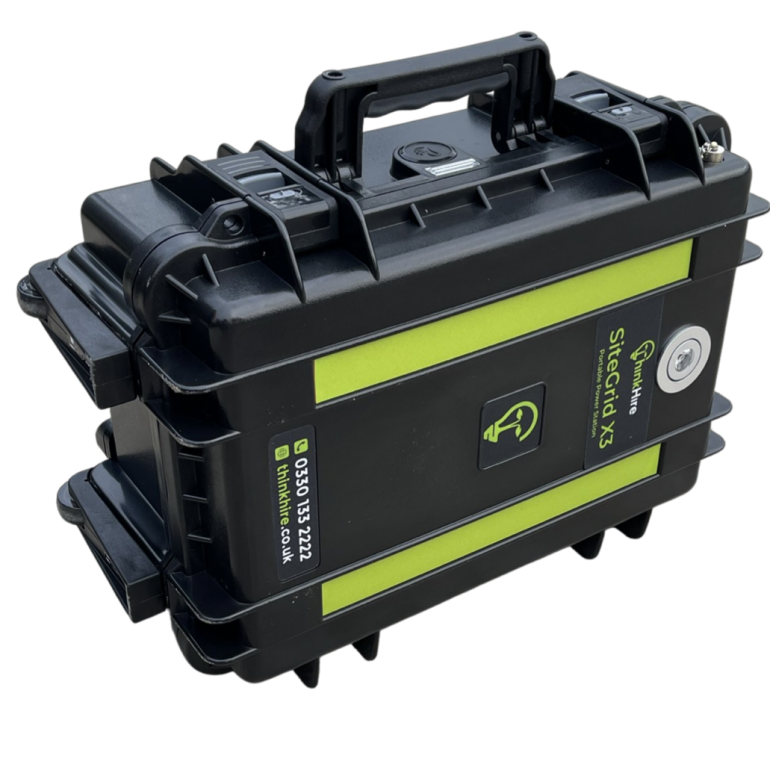

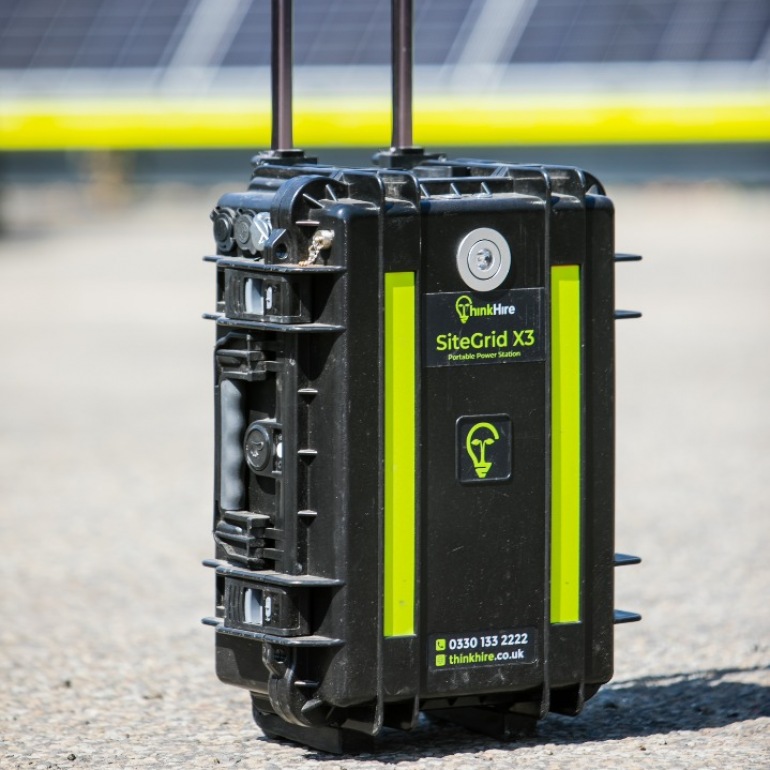

The SiteGrid X3 is a truly portable lightweight battery hybrid power generation system that can deliver up to 3.6kW at peak power.

The smallest option in our battery hybrid power range, the SiteGrid X3 offers a robust, compact, mobile energy source for off-grid and remote applications built for powering everything from CCTV to emergency radio systems housed within the strongest of cases to withstand the toughest of conditions and transportation methods. The compact and lightweight design means that it only requires one person to carry and set up the system.

The lithium battery system within the unit is rated to >3000 cycles and includes a management portal for monitoring charge and discharge rates as well as levels as well as a safety system includes 6 layers of protection including overcharge/ discharge, overload, over-temperature, short circuit and under-voltage.

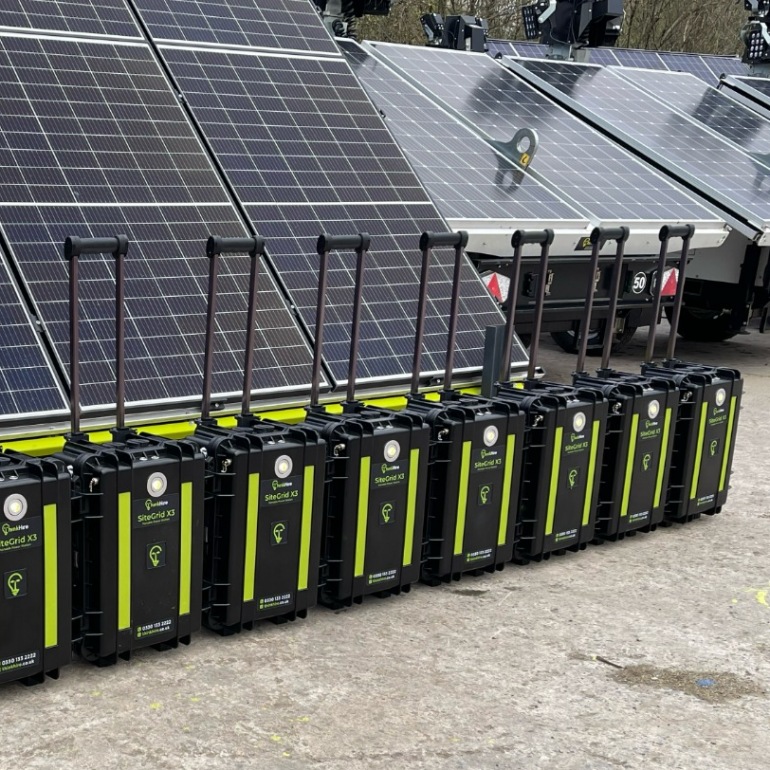

Power to charge the battery store can come from renewable sources, mains power, portable generator or an auxiliary vehicle power supply. This makes the unit an ideal solution for rapid deployment in remote locations, particularly where silent power is the main consideration.

Key features and benefits

  • Reduce environmental impact and carbon footprint
  • No noise emissions
  • 3kWh of battery power
  • Remote energy management
  • Chargeable from mains, aux vehicle power, renewable energy source & generators
  • Battery Tool charging
  • Lion smart battery technology
  • Fast charge

Specifications

Electrical Properties
Inverter Rated Power 2kVA
Output Voltage 230v
Peak Power 3.6kW
Standard Outlets 230v/ 12v/ 110v
Operating Range -5oC to +40oC (fan assisted cooling)
Energy Storage
Capacity 3kWh
Mechanical Properties
Dimensions (L x W x H) 348mm x 205mm x 458mm
Weight 25kg
