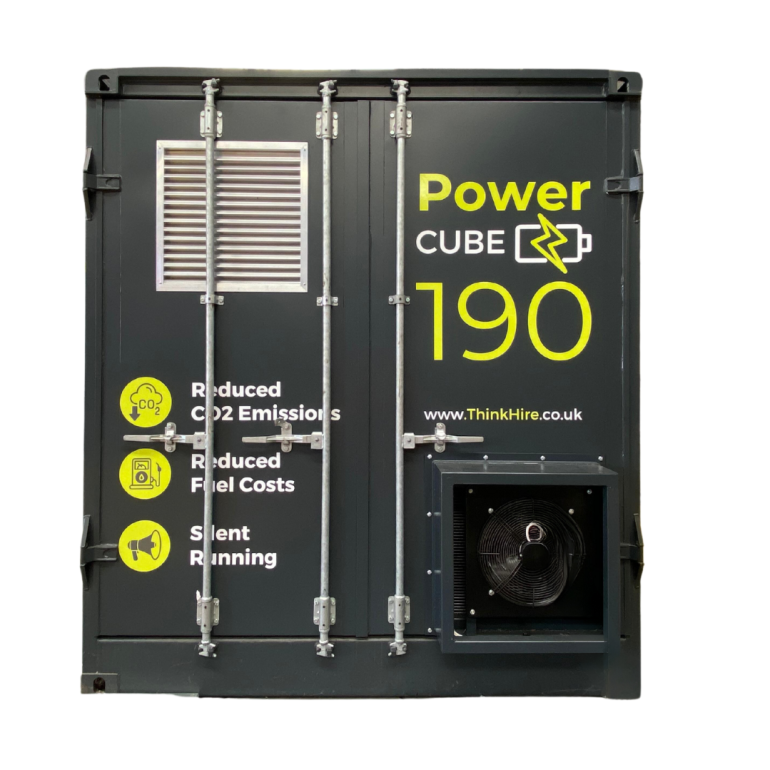

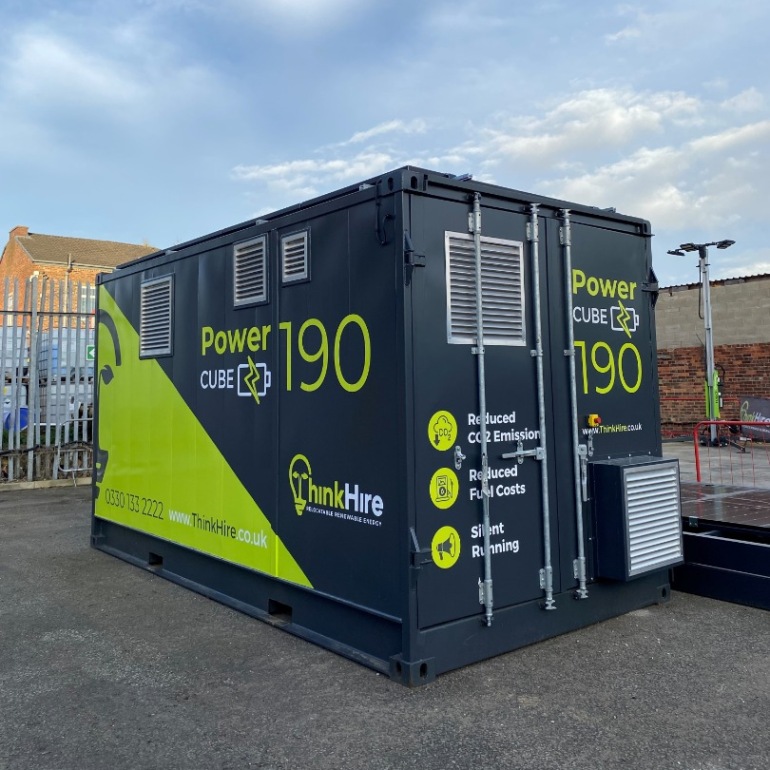

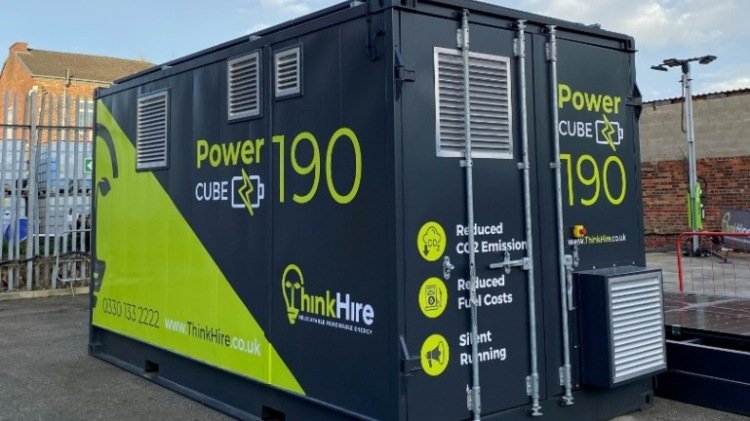

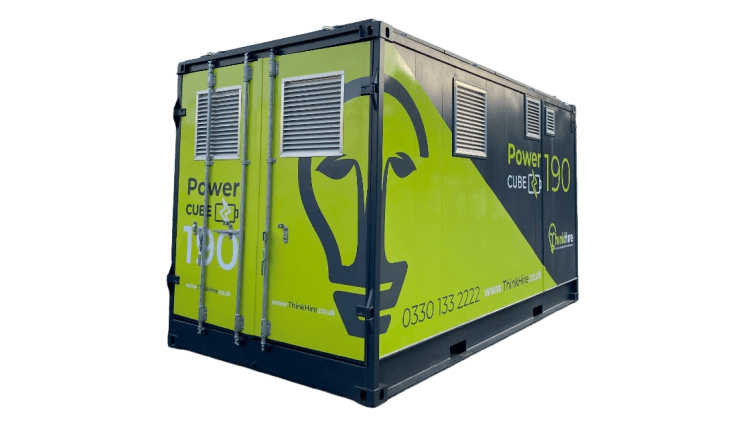

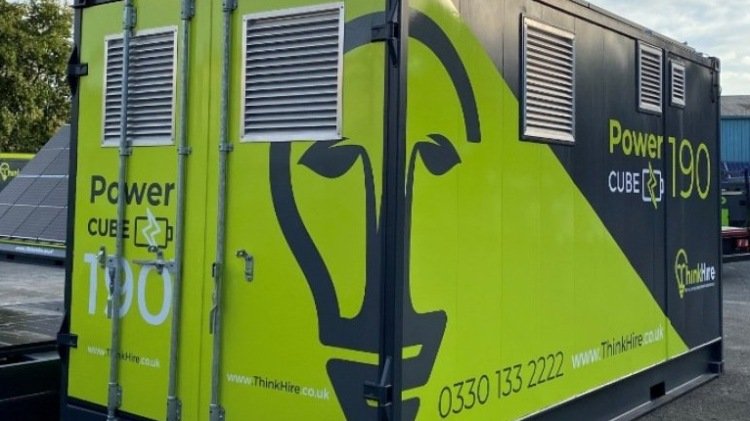

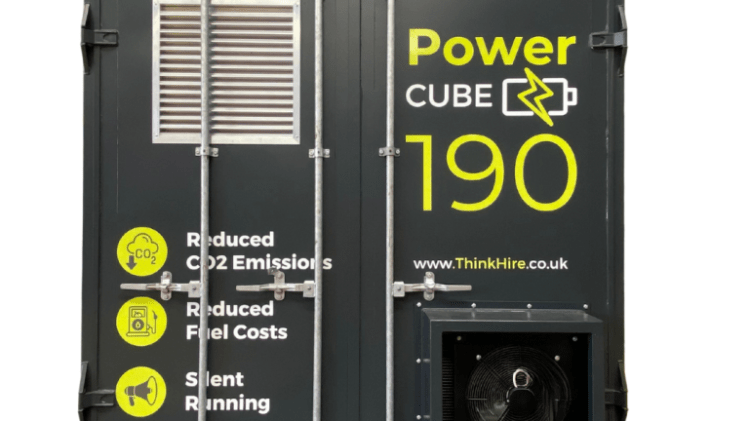

PowerCube 190
Off-Grid Hybrid Power System
The Powercube 190 is a hybrid power system that provides a convenient and efficient way to deliver power to any site environment without a grid connection. It uses the in-built backup generator power and renewable energy sources to store power in a battery bank, which significantly reduces emissions. Additionally, the Powercube 190 has an optional Energy Management System (EMS) that allows all separate loads to be fed independently and programmed with their unique schedules for intelligent power management.
Features & Benefits
- Plug & Play hybrid system
- Remote energy management as standard
- Live energy reporting as standard
- 3 phase configurations
- Backup 115kVA Generator (HVO or Diesel)
- Renewables ready - Solar PV, Wind, Hydro
- Automated Inverter fault reset
- Full generator integration giving remote control, alarm notification, alarm reset and remote generator restart
- Customisable reporting and data analytics
Product Specifications
| Length | 4.88 m |
| Width | 2.44 m |
| Height | 2.6 m |
| Weight | 7800 kg (dry) |
| Peak Power | 190kVA |
| Phase Configuration | 3PH |
| Inverter Power | 90kVA |
| Battery Type | Lithium LFP |
| Battery Capacity | 96 kWh |
| Battery Depth of Discharge | 95% |
| Standard Outlets | 800A Powersafe Connectors 2 x 125A 3PH, 2 x 63A 3PH |
| Transfer Switch | 3 x 200A |
| Fan Assisted Cooling | -20 to +50°C |
